Shower Pan Leaks: The Slow Bathroom Failure Florida Homes Hide

Some leaks announce themselves with a hiss or a puddle. A failing shower pan does neither. It releases a little water into the surrounding structure with every single shower, day after day, in amounts too small to see and too regular to ever dry out. By the time most Brevard County homeowners discover the problem, the evidence has migrated: a baseboard swelling in the bedroom on the other side of the wall, a musty smell that cleaning never beats, tile that sounds hollow underfoot. Understanding what a shower pan is, and how it fails, turns those vague symptoms into an early catch instead of a demolition project.

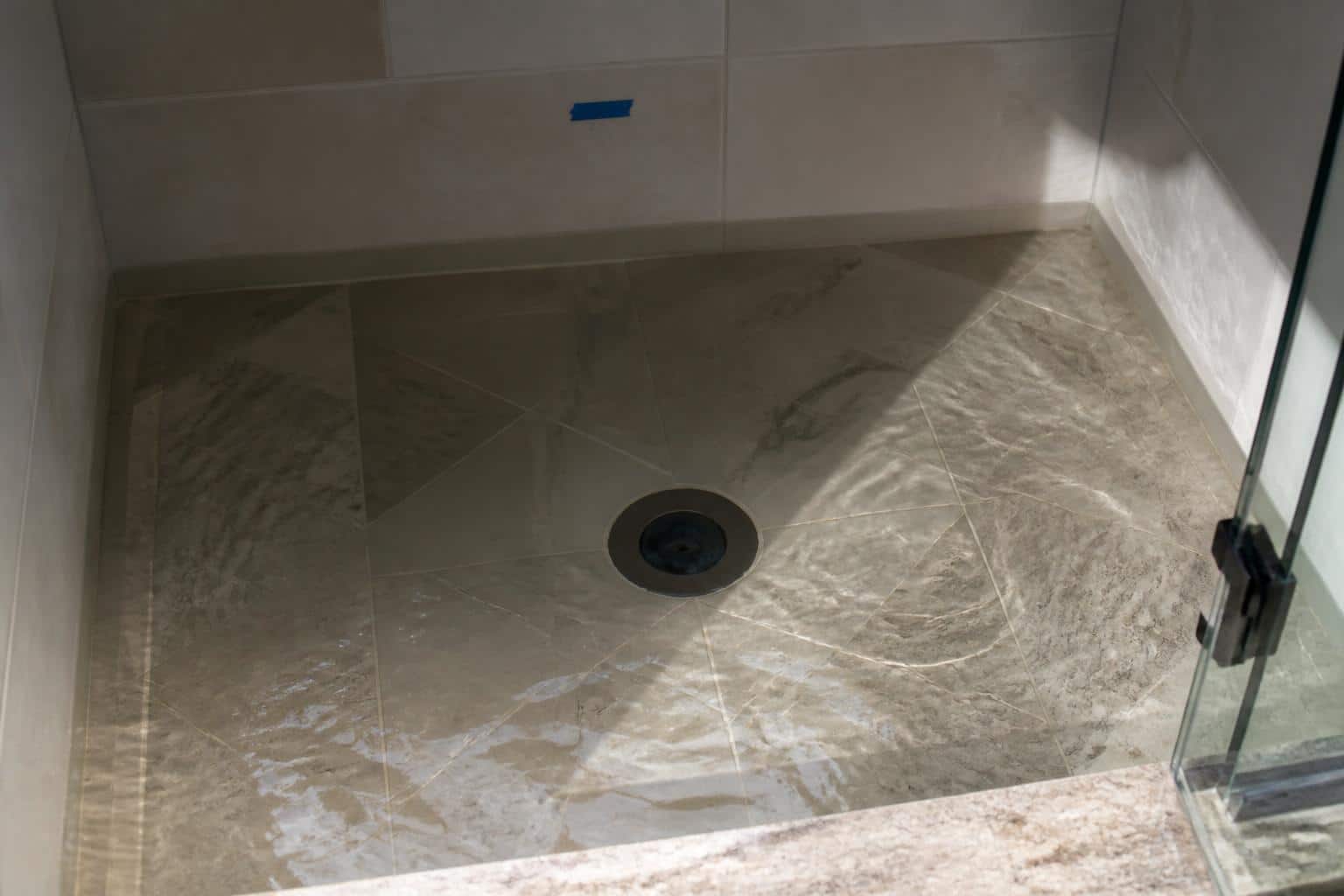

What Is Actually Under Your Shower Floor

A tiled shower floor is not waterproof, and this surprises almost everyone. Tile and grout are decorative armor; grout in particular is porous and absorbs water readily. The actual waterproofing in a traditional tiled shower is a hidden membrane called the pan or liner, a sheet of heavy vinyl or a applied waterproof layer that sits beneath the mortar bed the tile is set on. It is shaped like a shallow basin, runs up the walls several inches behind the bottom rows of tile, and connects to a special two-part drain.

The design accepts that water will get through the tile. Moisture that soaks through grout is supposed to hit the membrane, travel along a pre-sloped layer underneath, and enter the drain through small weep holes in the drain’s lower flange. In other words, the shower you see is a roof; the pan below it is the actual boat. Prefabricated one-piece fiberglass and acrylic shower bases work differently, being their own waterproof vessel, and most of what follows concerns the tiled kind, along with the seams and drain connections that every type shares.

How Pans Fail

Age is the ordinary cause. Vinyl liners stiffen and grow brittle over decades, then crack at folded corners and around the drain clamp, exactly where stress concentrates. Poor original work fails faster: liners punctured by fasteners during construction, corners cut short, missing pre-slope layers that let water pond on the membrane, and, very commonly, weep holes blocked by mortar the day the shower was built. A blocked weep path means water that penetrates the grout has no exit, so the mortar bed underneath stays saturated permanently, wicking moisture outward to walls and thresholds. The membrane also only rises so far; grout failures higher up a wall, or a failed seal at a curb, route water past the pan entirely.

Florida slab construction changes how the damage shows itself. In a two-story northern house, a failed pan drips through the ceiling below and gets discovered quickly. On a slab in Palm Bay or Melbourne, there is no ceiling below to stain. The water goes sideways and down, into the wall plates, the adjacent room’s flooring, and the slab itself, where it spreads invisibly and feeds mold in wall cavities that never see daylight. Slab homes hide this failure longer, which is exactly why it deserves suspicion sooner.

The Signs Worth Taking Seriously

The early symptoms are subtle and easy to explain away one at a time. Together they make a pattern.

• A musty smell in or near the bathroom that returns no matter how the room is cleaned or ventilated.

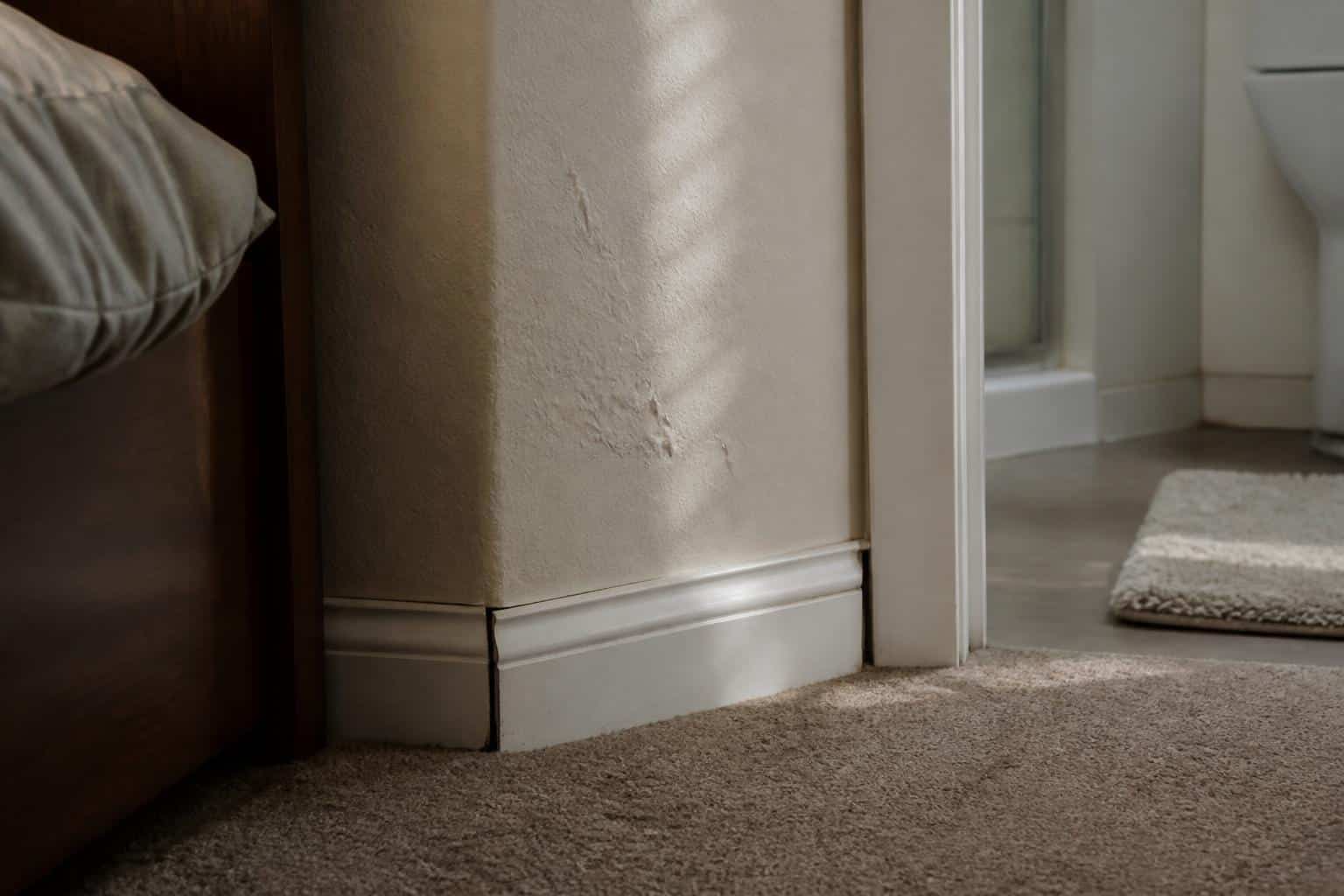

• Swollen or lifting baseboards, bubbling paint, or damp carpet edges in the room that shares a wall with the shower, which is often where slab-home pan leaks surface first.
• Grout that keeps cracking or discoloring at the shower floor, and floor tiles that sound hollow when tapped, a sign the mortar bed below has been wet and deteriorating.
• Staining or efflorescence at the curb, the white crusty mineral bloom that saturated masonry leaves as it dries at the edges.
• Persistent dampness around the shower threshold hours after anyone showered.

Any one of these can have another cause, splash over a curb, a failing door sweep, a supply or valve leak inside the wall. The point is not to panic at a smell; it is to test rather than repaint over the evidence a third time.

The Flood Test That Settles It

There is a simple, decisive test, and it is the same one inspectors use. Block the shower drain with a test plug or an inflatable ball, run a few inches of water into the pan, up to just below the curb, mark the level with a piece of tape, and let it stand for several hours, ideally overnight. If the water level drops meaningfully and the drain is genuinely sealed, the pan is leaking; there is nowhere else for it to go. Meanwhile, watch the adjacent room’s baseboards and the area around the shower for new dampness.

The test’s honesty depends on the plug actually sealing, and interpreting a marginal result takes some judgment, which is why many homeowners have a plumber run it as part of a leak evaluation. The reverse result is just as useful: a pan that holds water perfectly while symptoms continue points the investigation at the valve, the shower arm, the supply lines, or the drain trap below, each of which is a far smaller repair than a pan. The EPA’s WaterSense program devotes an annual Fix a Leak Week to exactly this kind of hunt, because small household leaks waste a remarkable amount of water once they run for months. Professional leak detection can separate these without opening walls on a guess.

What Repair Really Means

Here is the part nobody enjoys hearing, delivered plainly: a genuinely failed pan membrane cannot be fixed from above. Sealing the grout, recaulking the corners, or painting a waterproofing product over the tile addresses the armor, not the boat, and at best postpones the reckoning while the structure below stays wet. A true repair means removing the shower floor tile and mortar bed, replacing the membrane and its drain connection, verifying slope and weep function, and rebuilding, done properly, it resets the clock for decades.

The silver lining is that a forced rebuild is also an opportunity. Modern bonded waterproofing systems are more forgiving than old vinyl liners, and if the shower was due for updating anyway, curbless entries, benches, and full bathroom plumbing updates fold into the same opening of the floor. Catching the failure early is what keeps the project confined to the shower instead of extending into flooring, drywall, and mold remediation in the rooms around it.

Frequently Asked Questions

How long does a shower pan last?

A well-built traditional pan with a vinyl liner commonly lasts 25 to 40 years, and modern bonded membrane systems should do as well or better. Poorly built pans, missing pre-slope, blocked weep holes, punctured liners, can fail inside a decade. Age matters less than symptoms: a 30-year-old shower with no signs needs watching, not demolition, while a 12-year-old shower with recurring musty smells deserves a flood test.

Can I just regrout or seal the tile to stop the leak?

Fresh grout and sealer reduce how much water reaches the membrane, and they are worthwhile maintenance on any tiled shower. But grout was never the waterproof layer, and if the membrane below has failed, no surface treatment stops the leak. If symptoms persist after regrouting, stop spending on the surface and test the pan.

Will my homeowner’s insurance cover a shower pan leak?

Policies vary, but the general pattern is that sudden accidental water damage may be covered while long-term seepage and the worn-out pan itself usually are not. Documentation helps either way: photographs, the flood test result, and a plumber’s written findings. Check your own policy language rather than assuming in either direction.

My shower is a one-piece fiberglass base. Can it still leak?

Yes, though differently. One-piece bases crack, especially when installed without full support underneath and flexed for years, and their drain gaskets loosen and fail. The flood test works on these too. Drain-connection leaks on a fiberglass base are often repairable without replacing the base, which makes testing even more worthwhile before assuming the worst.

A shower that smells musty, keeps cracking its grout, or dampens the wall behind it is asking for a test, and the test is cheap compared to every alternative. Inlet Mechanical evaluates shower and pan leaks across Melbourne, Palm Bay, and Brevard County, and we will tell you honestly whether you need a drain gasket or a rebuild. Call us at (321) 723-0858.
