Where UV Lights Are Installed in an HVAC System

If you have been researching hvac uv light installation placement, you have probably run into conflicting advice about where these lamps actually belong inside a system. Here in Brevard County, the question matters more than it does in drier climates. Our Space Coast homes run their air conditioners nearly year-round, and indoor coils stay damp through Florida’s long cooling season. That moisture, combined with relative humidity that often sits above 70 percent, gives mold and biofilm a steady place to grow. At Inlet Mechanical, we install ultraviolet lamps in specific spots for specific reasons, and understanding those locations helps you decide whether a UV system fits your home.

The Two Jobs a UV Lamp Can Do Inside Your System

Before talking about placement, it helps to separate the two distinct purposes a UV light serves, because they call for completely different mounting points. The first job is coil sterilization. A lamp aimed at the evaporator coil and drain pan runs continuously, breaking down the mold and bacterial film that forms on cold, wet aluminum fins. This is the most common reason homeowners on the Space Coast ask us about UV. The second job is air sterilization, where the lamp targets microorganisms moving through the airstream rather than growth sitting on a surface.

These are not interchangeable. A coil lamp does little for airborne particles because air passes by too quickly for a meaningful dose. An air-sterilizing setup does little to keep your coil clean because it is not pointed at the coil. We walk every homeowner through which problem they are actually trying to solve, since paying for the wrong configuration is a common and avoidable mistake. For most Brevard homes dealing with musty smells and a slimy drain pan, coil sterilization is the practical choice, and it integrates cleanly with the rest of your residential HVAC system.

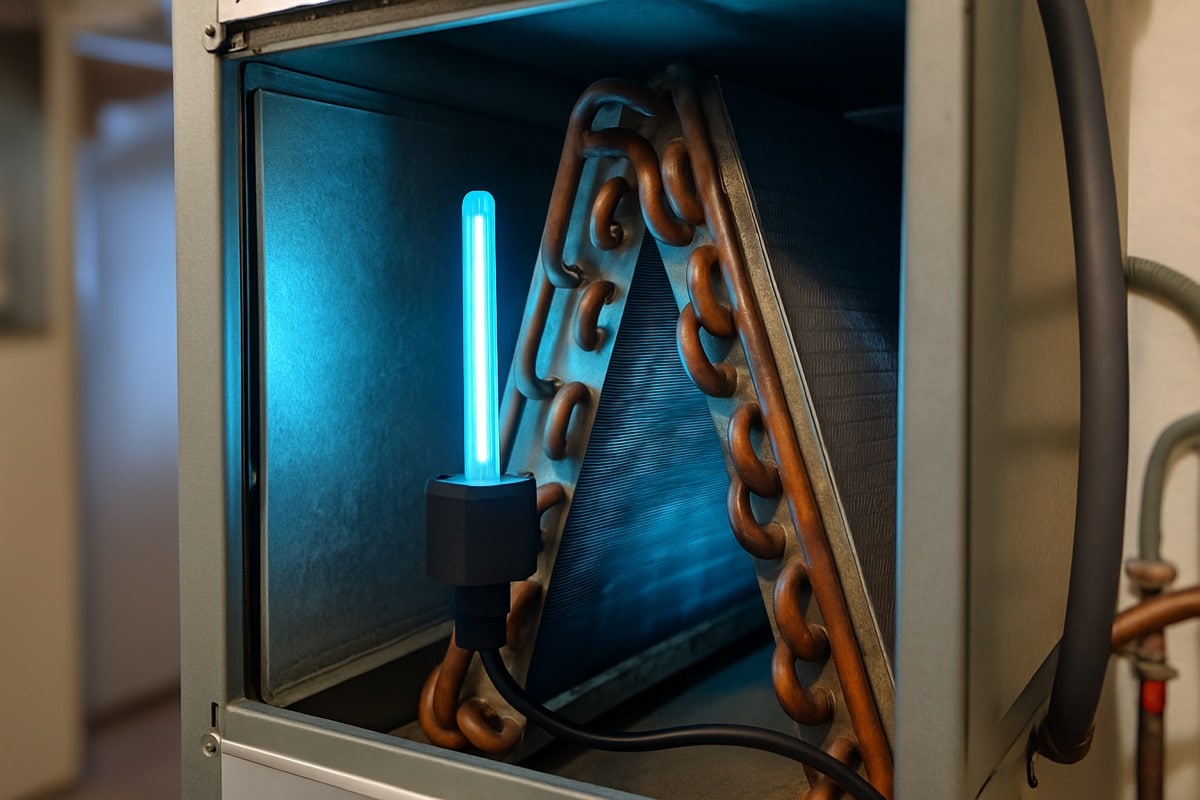

Mounting a Coil Lamp at the Evaporator

When the goal is keeping the coil clean, we mount the lamp inside the air handler or the plenum directly downstream of the evaporator, positioned so its light falls across the full face of the coil and onto the condensate drain pan below. Coverage is everything. A lamp that only lights half the coil leaves the shaded half free to grow biofilm, so we size the lamp output and bulb count to the physical dimensions of the coil rather than guessing.

Placement also has to respect the system itself. The lamp body and wiring cannot sit where they obstruct airflow or interfere with the blower, and the bulb has to be reachable for the annual replacement that keeps UV output strong. Most lamps lose effectiveness well before they stop glowing, which is why we note the replacement interval at install. We also confirm that nearby flex duct, wiring insulation, and any plastic drain components are either shielded or rated for UV exposure, because concentrated ultraviolet light degrades certain plastics over time. On Space Coast systems that already battle humidity and the occasional power flicker during afternoon storms, getting the mounting right the first time prevents callbacks. The U.S. Environmental Protection Agency offers a balanced overview of UV and other residential air-cleaning approaches for homeowners weighing their options.

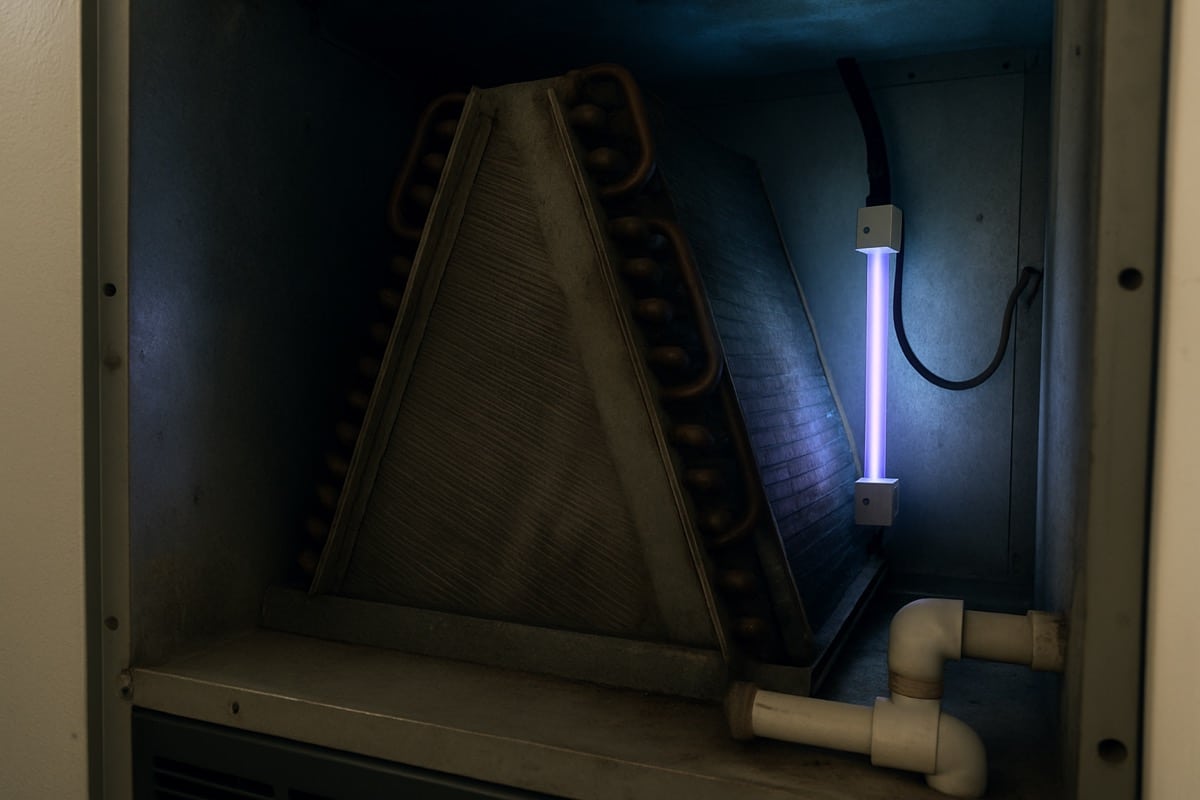

Placing an Air-Sterilizing Lamp in the Return or Supply

When a homeowner specifically wants to treat the moving airstream, the lamp goes in a different place entirely. We mount these units in the return duct ahead of the air handler or in the supply plenum just after it, where we can build in enough exposure length for the air to receive a usable dose as it passes. The faster air moves, the more lamp intensity or surface area you need to compensate, so duct dimensions and blower speed drive the design.

Why Return Versus Supply Matters

A return-side lamp treats air before it reaches the coil, which can offer some coil protection as a side benefit. A supply-side lamp treats air on its way out to the rooms. Neither placement turns a UV lamp into a substitute for filtration. UV light works on living organisms; it does nothing for dust, pollen, or the pet dander that a good filter captures. We are always direct with Brevard homeowners about that boundary so expectations stay realistic.

Coordinating With Filtration

The strongest indoor-air results come from pairing UV with proper filtration rather than treating one as a replacement for the other. A well-fitted, appropriately rated filter handles particles; the UV lamp handles biological growth on the coil or in the air. We look at the whole picture during a UV light installation in Brevard County so the components complement each other.

How Florida’s Climate Changes the Calculation

Placement rules are the same anywhere, but the case for installing UV at all is stronger on the Space Coast than in most of the country. Our cooling season stretches across most of the year, so the evaporator coil stays cold and wet for months at a stretch instead of weeks. That standing dampness, paired with outdoor humidity that routinely climbs past 70 percent and a hurricane season running June 1 through November 30, creates close to ideal conditions for coil mold. Homes within roughly five miles of the Atlantic also deal with salt-laden air that accelerates corrosion, adding another layer of wear to coils and drain pans.

Because the coil runs so often here, a sterilizing lamp aimed at it tends to earn its keep. It does not replace coil cleaning or the rest of your maintenance, but it slows the regrowth that otherwise returns within a season. We size and position each lamp for your actual equipment rather than installing a one-size unit, and we factor in how your specific home runs through Brevard’s long, sticky summers.

What We Check Before Recommending UV

We do not assume every home needs a UV lamp. Before suggesting one, our team looks at whether you are noticing musty odors at the registers, visible growth on the coil or in the drain pan, or a coil that keeps fouling between cleanings. We confirm the air handler has the physical room to mount and service a lamp safely, and we verify the electrical supply can carry it. We also check that your filtration is doing its job, since a UV lamp paired with a neglected filter solves only half the problem.

If your symptoms point to a different cause, such as an oversized system that never dehumidifies properly or a drain line that needs attention, we tell you that instead of selling a lamp that would not help. The point is matching the solution to what is actually happening inside your equipment, then placing the lamp where it can do that job.

Frequently Asked Questions

Does a UV light go in the return or near the coil?

It depends on the goal. To keep the evaporator coil and drain pan free of mold, the lamp mounts inside the air handler aimed at the coil. To treat the moving airstream, it goes in the return or supply duct with enough exposure length. Coil sterilization is the more common request among Brevard homeowners dealing with musty odors and damp coils.

Will a UV lamp replace my air filter?

No. UV light acts on living organisms like mold and bacteria, while a filter captures dust, pollen, and dander. The two address different problems, so they work best together. We never position a UV lamp as a substitute for proper filtration, and we check that your filter is correctly sized and seated when we evaluate your system.

How often does the bulb need replacing?

UV bulbs lose output gradually, usually well before they stop glowing, so most are replaced on a yearly schedule. A lamp that still lights up may be delivering far less sterilizing energy than it did when new. We note the recommended interval at installation and mount the lamp so the bulb stays reachable for that routine swap.

Is UV light safe inside my ductwork?

Yes, when installed correctly. The light stays enclosed within the air handler or duct and is not visible or accessible during normal operation. We shield or confirm UV ratings for nearby plastics and wiring, because concentrated ultraviolet light can degrade some materials over time. Proper enclosure and mounting keep the light contained where it belongs.

If you are weighing whether UV makes sense for your Space Coast home, our team at Inlet Mechanical is glad to take a look and walk you through the options without pressure. We will tell you honestly whether a lamp fits your situation and where it should go. Call us at (321) 723-0858 or learn more about our UV light installation services in Brevard County.
