Bathtub Overflow Gasket Leak: Why a Tub Leaks Only When Full

A bathtub overflow gasket leak is a common suspect when a tub stays dry during normal draining but leaks after the water level reaches the overflow opening. For a Palm Bay, Melbourne or Brevard County homeowner, the practical move is to stop using that tub until the leak path is checked, especially if water is appearing on a ceiling, wall, floor or cabinet below.

That timing is useful information, but it is not a complete diagnosis by itself. Water can travel behind tile, along framing or around the tub body before it shows up somewhere else. A plumber’s job is to separate an overflow problem from a drain shoe leak, supply plumbing issue or splash path before parts are replaced.

How a Bathtub Overflow Gasket Leak Usually Shows Up

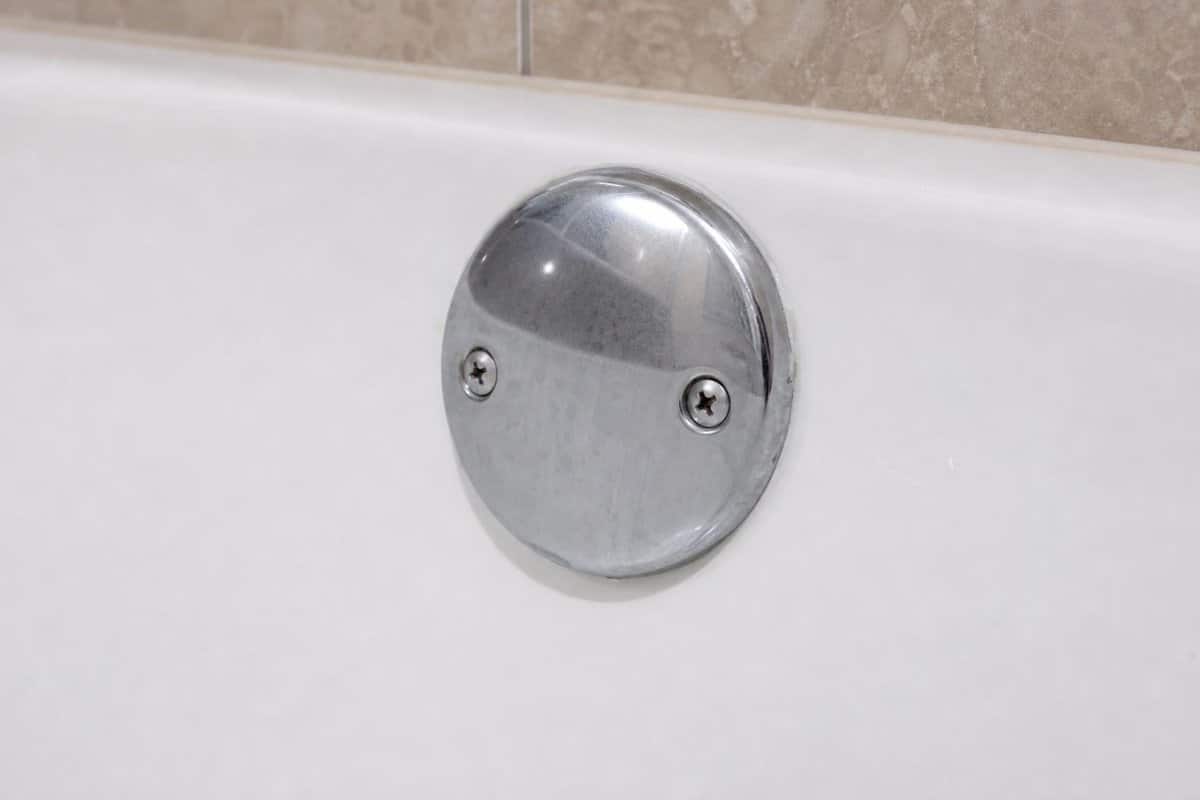

The overflow opening is the round plate on the tub wall below the faucet. Behind that plate, a gasket helps seal the overflow connection where the tub wall meets the waste and overflow assembly. When the tub is filled high enough, water enters that opening and travels down the overflow tube to the drain system.

If the gasket is hardened, compressed, shifted or not sealing against the tub surface, water may escape behind the tub instead of staying inside the overflow assembly. That can create a leak only when the water level reaches the overflow, which is why the tub may appear fine during showers or shallow baths.

In many bathrooms, the first visible clue is not at the overflow plate. You might see staining on a ceiling below, damp baseboard near the tub, bubbling paint, musty odor or water at the edge of the flooring. In a slab home, signs can be more subtle because water may follow framing or wall cavities before it becomes visible.

Do not deliberately fill the tub again to prove the leak. Repeating a known leak can damage drywall, flooring, insulation and nearby rooms. If someone recently noticed water only after a deep bath, treat that observation as enough reason to pause use and arrange a careful plumbing check through residential plumbing service.

Other Leak Sources That Can Imitate Overflow Trouble

A bathtub overflow gasket leak is not the only reason a tub leaks when it is filled, used or drained. Water may be escaping at the tub drain shoe, which is the fitting attached to the drain opening at the bottom of the tub. If that seal is failing, water may show up during draining, after someone steps in the tub or when standing water puts pressure on the drain connection.

Supply plumbing can also confuse the picture. A faucet, valve body, shower riser or tub spout connection may leak inside the wall only when the valve is running. In that case, the leak may be associated with bath time, but not with the overflow gasket itself. A plumber will consider whether water appears while filling, while draining, while showering or after the tub sits full.

Splash paths are another common source, especially in family bathrooms and guest baths. Water can escape past a shower curtain, run along a tub ledge, enter a gap at the escutcheon or follow cracked caulk at the tub and wall joint. In Florida homes, repeated moisture around walls and trim can create damage that looks like a hidden plumbing leak.

The waste and overflow assembly itself has several parts that must work together. Manufacturer and trade product information, such as Oatey’s overview of bath waste and overflow assemblies, shows that the overflow, drain and connecting components are part of one coordinated system. The exact repair approach depends on the tub, finish plate, pipe material and the assembly installed behind the wall.

What to Notice Before Calling About a Tub That Leaks Only When Full

You do not need to take the overflow apart or open walls before calling. In fact, removing parts without knowing the assembly can make the leak harder to evaluate or damage a finish plate, screw, linkage or gasket. The safest contribution is to make accurate observations and keep the area dry until help arrives.

Write down what happened the last time the leak appeared. The timing often points the inspection in a better direction. A leak that starts as soon as the faucet runs differs from one that appears only after the water reaches the overflow, and both differ from a leak that shows up during draining.

• Water level: Did the leak appear only when the tub was filled near the overflow opening?
• Fixture use: Was the tub being filled, drained, showered in or just sitting full?
• Leak location: Where did you first see water, staining, dripping or dampness?
• Recent changes: Was the overflow plate, drain, faucet, tile, caulk or nearby flooring recently touched?
• Access points: Is there a closet, cabinet, access panel or adjoining room behind the tub wall?

Photos can help, especially if the leak dries before service. Take pictures of the overflow plate, tub drain, faucet wall, floor edge and any water stains below or beside the bathroom. If water is actively dripping near electrical fixtures, avoid the area and do not try to investigate inside ceilings or walls yourself.

For commercial properties, apartments, short-term rentals or businesses in Brevard County, also note how often the tub is used and whether multiple people have reported the same symptom. A small leak can become a larger maintenance issue when fixtures are used repeatedly before diagnosis.

How a Plumber Separates the Gasket, Drain Shoe, Supply Lines and Splash Paths

A careful visit usually starts with a conversation and visual inspection. The plumber will look at the overflow plate, tub drain, faucet trim, tub-to-wall joints, accessible piping and the area where water was found. If there is an access panel, the inspection may be more direct. If not, the plumber will discuss options before any invasive step is considered.

Testing should be controlled, not a repeated flood. Depending on the situation, a plumber may isolate the conditions that caused the leak by checking the faucet operation, drain behavior, overflow area or visible piping. The goal is to confirm the leak path with as little water exposure as practical.

If the overflow gasket is the likely failure, replacement has to match the tub and waste and overflow assembly. Gasket shape, thickness and fit can vary, and old hardware may be corroded or fragile. The plumber may also check whether the overflow elbow is aligned correctly against the tub, because a new gasket cannot always correct a poor fit or damaged assembly.

If the drain shoe is the problem, the repair plan is different. The seal at the bottom drain may need attention, and access constraints can affect how the work is approached. If the issue is a supply connection or valve, the work moves away from the overflow assembly and into fixture plumbing diagnosis. If the problem is splash or failed sealant at a surface joint, the plumbing may be sound, but the bathroom still needs moisture control.

Repair Planning for Brevard County Homes and Businesses

Homes in Palm Bay, Melbourne and throughout Brevard County include a mix of slab foundations, framed floors, older bathrooms, remodeled tub surrounds and commercial or multifamily layouts. That variety affects how easy it is to see the backside of a tub and how quickly water damage becomes visible. An intact tile wall or fiberglass surround may hide the leak source until access is planned.

A plumber will typically weigh the least disruptive way to confirm and repair the issue. Sometimes the overflow plate and gasket can be addressed from the tub side. In other cases, a rear access panel, closet wall or ceiling below may offer a better view. The point is not to open more than necessary, but to avoid guessing when hidden piping or damaged materials are involved.

It is also important to look beyond the first failed part. If an overflow gasket has been leaking for some time, the nearby wall cavity, flooring or ceiling may need drying or repair by the appropriate trade. Plumbing repair stops the water source, while damaged drywall, trim or flooring may require separate attention.

Routine plumbing awareness pairs well with broader home maintenance. If you are already scheduling HVAC or plumbing service, it can be practical to ask about visible bathroom moisture concerns at the same time. Inlet Mechanical also provides residential HVAC maintenance services, which can help property owners plan service visits thoughtfully, but a suspected tub leak should be addressed promptly rather than waiting for a seasonal appointment.

Frequently Asked Questions

Can I keep using the tub if it only leaks during a deep bath?

It is better to stop using that tub until the leak is checked. A leak that appears only when water reaches the overflow can still send water into walls, ceilings, flooring or nearby rooms. Use another tub or shower if available. Avoid filling the tub again to recreate the leak, because repeated wetting can turn a small plumbing repair into broader moisture damage.

Does a leak near the overflow always mean the gasket is bad?

No. The overflow gasket is a strong possibility when leaking starts at overflow level, but the drain shoe, supply plumbing, tub spout connection, valve body or splash paths can create similar symptoms. Water can travel before it appears, so the visible stain may not be directly under the failed part. A controlled inspection helps avoid replacing a gasket when another source is responsible.

Can I replace the overflow gasket myself?

Some overflow plates look simple, but the parts behind them vary. Screws can be corroded, linkages can be present, and the gasket must fit the specific assembly and tub surface. If the piping shifts or the seal is misaligned, the leak may continue. For a suspected bathtub overflow gasket leak, professional diagnosis is the safer choice, especially when water has reached finished walls or ceilings.

What information should I share when I schedule plumbing service?

Share when the leak appeared, how full the tub was, whether the faucet or shower was running, and where water showed up. Mention any recent bathroom work, drain changes or caulking. Photos of stains, the overflow plate and the tub drain are useful. Also tell the scheduler whether there is an access panel or an adjoining closet behind the tub.

Schedule plumbing help with Inlet Mechanical if a bathtub in your Palm Bay, Melbourne or Brevard County property leaks only when full or shows moisture near the overflow area. Call (321) 723-0858 or contact Inlet Mechanical to plan a careful diagnosis before more water is used.
