How the Florida Sun Destroys AC Line Set Insulation (and What It Costs You)

Walk over to your outdoor air conditioning unit and look at the two copper pipes running into the house. One is small and bare. The other is larger and wrapped, or at least it was wrapped when the system was installed, in black foam insulation. On a distressing number of Space Coast homes, that foam is now cracked, crumbling, chalky, or simply gone for stretches, leaving bright copper shining in the sun. Most homeowners assume the wrap is cosmetic and its loss is harmless. It is neither. That unglamorous foam sleeve has a measurable job, and Florida is close to the worst environment in the country for keeping it intact.

Two Pipes, Two Different Jobs

The pair of copper lines is called the line set, and the two pipes are doing opposite work. The larger one is the suction line, carrying cold refrigerant vapor, typically in the neighborhood of 50 to 60 degrees, from the indoor coil back to the compressor. The smaller one is the liquid line, carrying warm high-pressure liquid refrigerant from the outdoor unit to the indoor metering device, usually running around outdoor temperature or a bit above.

Only the cold suction line gets insulated, and for two reasons. First, efficiency: every degree of heat that Florida air dumps into that cold vapor on its way to the compressor is heat your system just absorbed for nothing, cooling the back yard instead of the living room, and warmer vapor returning to the compressor also makes the compressor run hotter than it should. Second, condensation: a 55 degree pipe surface in Brevard County summer air, where dew points camp in the mid seventies, will stream water continuously. The insulation keeps humid air off the cold copper. The liquid line, being warm, needs neither protection, which is why it is bare by design and not a defect.

What Florida Does to Foam Insulation

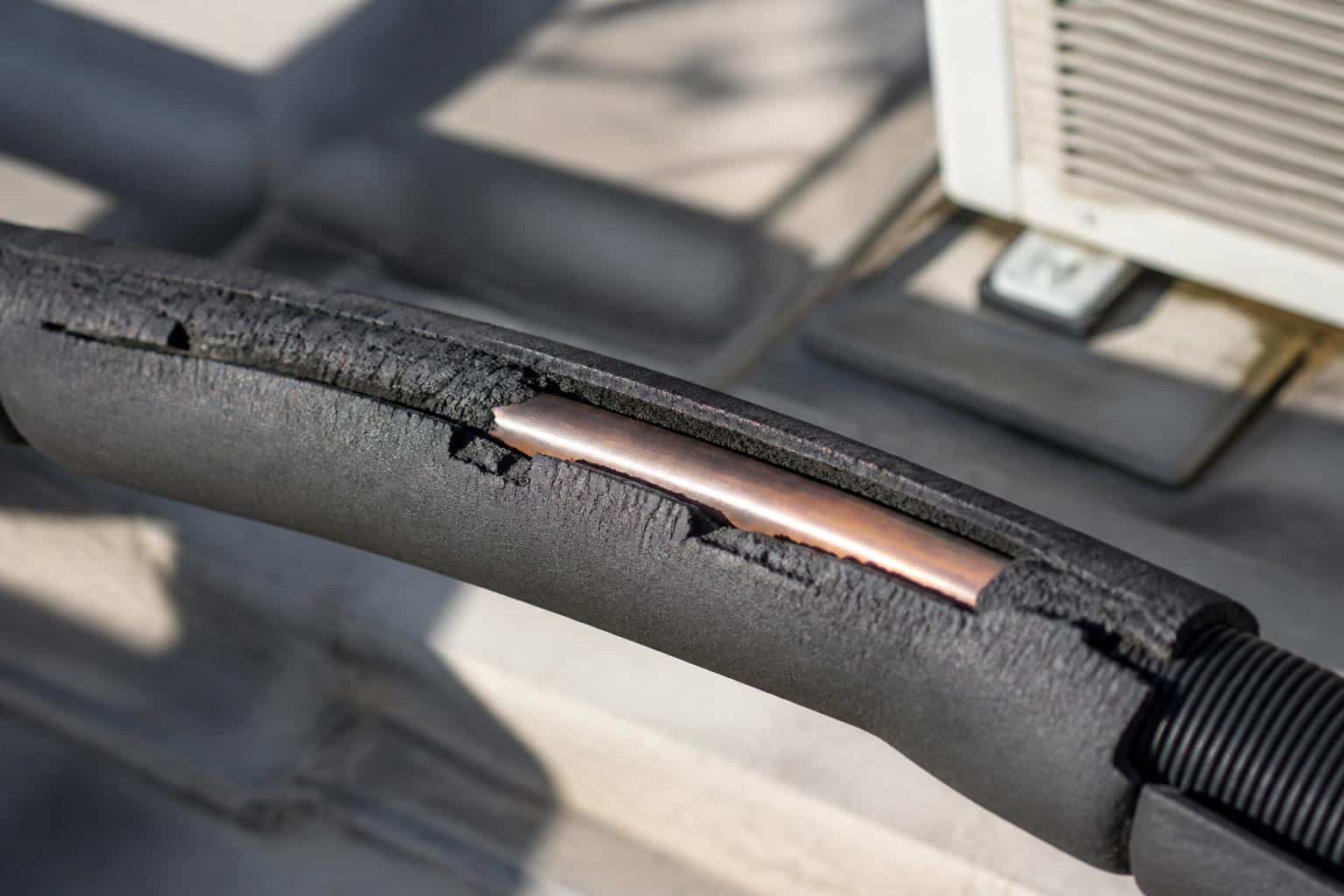

The standard black elastomeric foam is genuinely good at its job, but ultraviolet light is its natural predator, and the exposed run between the wall and the condenser gets bombarded year-round here. UV breaks down the outer surface into a chalky crust that flakes away, thinning the wall season by season. Heat accelerates the aging, and our rainy-season cycles of soaking and baking finish the work. Landscapers contribute with string trimmers, dogs occasionally find foam interesting, and squirrels and rats treat it as free nesting material. Ten years into a system’s life, it is common to find the outdoor portion of the insulation split open along the top like an overbaked loaf while the section inside the wall remains perfect.

The result is a cold pipe wearing wet rags. Waterlogged, cracked foam insulates poorly and holds moisture directly against the copper, which invites corrosion, especially in the salt-touched air east of I-95. From there the problems compound quietly.

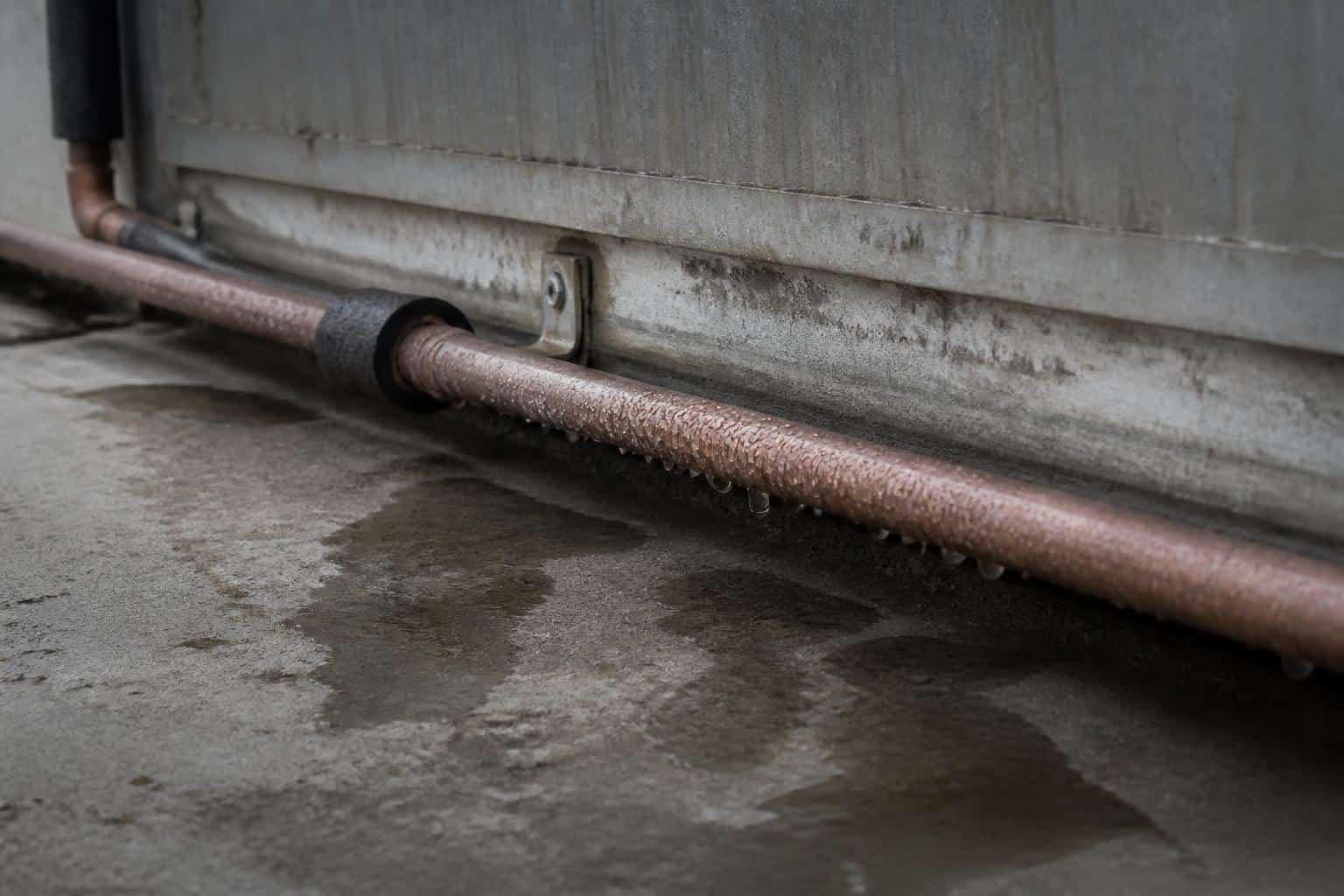

The Real Costs of a Bare Suction Line

The efficiency penalty is the easiest to state: an uninsulated suction line forces the system to throw away some of the cooling it just produced, and it raises the temperature of the vapor cooling the compressor motor, nudging the hardest-working component in the system toward a shorter life. On a long line set, a system running ten hours a day through a Florida summer, the waste adds up to real money over a season, all to avoid a repair that costs less than almost anything else on the equipment. ENERGY STAR’s overview of sealing and insulating at energystar.gov covers the same principle at the whole-house scale.

The condensation costs are sneakier, and they depend on where the bare pipe runs. Outside, the dripping is mostly harmless. The trouble is the portion you cannot see. Line sets pass through walls, and in many homes they run through the attic or a chase to reach an air handler. A bare cold pipe in an attic or wall cavity rains inside the structure, soaking insulation, staining ceilings, and feeding mold in a space with no drying airflow. We have traced more than one mystery ceiling stain, blamed on roof leaks and plumbing in turn, to a few feet of naked suction line sweating in the attic above. If the foam is missing at the wall penetration outside, it is worth asking what condition it is in past the wall.

A Two-Minute Inspection Anyone Can Do

Checking your own line set takes less time than reading this section. Walk to the outdoor unit and follow the insulated line from the cabinet to the wall. Squeeze the foam gently in a few places: healthy insulation is springy and dry, while spent insulation feels stiff, soggy, or crumbles at the touch. Look along the top surface, where UV damage begins, for splits and chalky flaking, and check the two ends, at the unit’s service valves and at the wall penetration, since those are where sections most often go missing entirely. While the system is running, lay a hand near any exposed copper; if it is cold and wet, that section is costing you money at that exact moment. Note what you find and mention it at your next service visit, or handle the exposed portion yourself over a weekend.

Fixing It Properly

Re-insulating a line set is refreshingly simple as air conditioning repairs go, and the material cost is trivial next to what it protects. The right way looks like this: the old degraded foam comes off entirely rather than being patched over, the copper is wiped down and inspected for corrosion, and new closed-cell elastomeric sleeve of the correct inner diameter and at least the original wall thickness goes on, with seams and butt joints glued shut so humid air cannot reach the pipe through gaps. Outdoors, the new foam should get UV protection: either a UV-rated jacket, a purpose-made line set cover, or a coat of water-based UV-protective paint made for the material. That one step is the difference between foam that lasts fifteen years and foam that starts cracking in three.

The wall penetration deserves sealing at the same time, since the gap around the lines is a standing invitation for insects, moisture, and attic air. A homeowner with patience can absolutely replace exposed exterior foam themselves, and we would rather see that done than see bare copper. Where we earn our keep is the concealed portions, attic and chase runs, and the judgment calls: corrosion on the exposed copper, ice appearing on the line, or oily residue at fittings, which points to a refrigerant leak and belongs with a cooling system diagnosis rather than a foam sleeve. Insulation condition is also one of the items a thorough maintenance visit should note every single time, precisely because it degrades too slowly for anyone to notice between years.

Frequently Asked Questions

Only one of my two copper lines has insulation. Is that wrong?

No, that is correct. The large cold suction line gets insulated; the small warm liquid line runs bare by design. If you find the large line bare and the small one wrapped, someone made a mistake worth correcting. If both are bare outdoors, the suction line needs its foam back.

Ice is forming on the big copper line. Is that an insulation problem?

Missing insulation does not cause icing by itself; sweating, yes, ice, no. Frost or ice on the suction line points to an airflow or refrigerant problem, most commonly a starved coil from a dirty filter, a failing blower, or a low charge. Shut the system off, let it thaw, and have it diagnosed. Re-wrapping an icing line without fixing the cause just hides the evidence.

Can I use pool noodles or pipe wrap tape from the hardware store?

Please use the real thing. Closed-cell elastomeric AC line insulation costs only slightly more than improvised alternatives and is engineered for exactly this service: it resists moisture absorption and handles the temperature range. Foam not rated for the job soaks up water and holds it against the copper, which can be worse than nothing. Slit-and-wrap installation is fine as long as the seams are glued closed.

How often should line set insulation be replaced in Florida?

Unprotected black foam in direct sun here often starts visibly failing within five years and is usually spent by ten. Protected foam, jacketed, covered, or UV-painted, lasts far longer. Rather than a schedule, use a standard: any season you can see cracks, gaps, chalking, or exposed copper, it is due, and the check takes thirty seconds on the walk to the mailbox.

A dollar’s worth of foam doing its job quietly saves you many times that in efficiency and moisture damage, which makes it one of the best-value repairs on the whole system. Inlet Mechanical inspects line sets as part of every service visit across Palm Bay, Melbourne, and the Space Coast. Call us at (321) 723-0858.
