Hard Start Kits: What They Do for an Aging AC Compressor

If your lights dim for a blink every time the air conditioner kicks on, or the outdoor unit has developed a groaning, shuddering start that sounds like effort, you may eventually hear a technician recommend a hard start kit. It is a small, inexpensive device, it often produces a dramatic before-and-after, and it is also one of the more misapplied parts in residential air conditioning, sometimes installed as a bandage on equipment that is trying to report a real problem. Here is what the device actually does, when it is the right call, and when it is a way of not hearing what your compressor is saying.

Why Starting Is the Hardest Moment

A compressor motor works hardest not on the hottest afternoon but in the first fraction of a second of every start. At rest, the motor draws a surge called locked rotor current, several times its running draw, while it fights from a dead stop up to speed, often against refrigerant pressures that have not fully equalized since the last cycle. Once spinning, the draw falls to a comparatively modest running current. That start surge is what dims your lights, and everything about starting gets harder as equipment ages: bearings add friction, windings lose a little of their vigor, and the single-phase motors in residential condensers need a phase-shifted push through a start winding to develop starting torque at all.

That push is the job of capacitors. Every unit has a run capacitor, which stays in the circuit continuously and keeps the motor turning efficiently. Starting assistance beyond that is where the hard start kit comes in.

What a Hard Start Kit Is

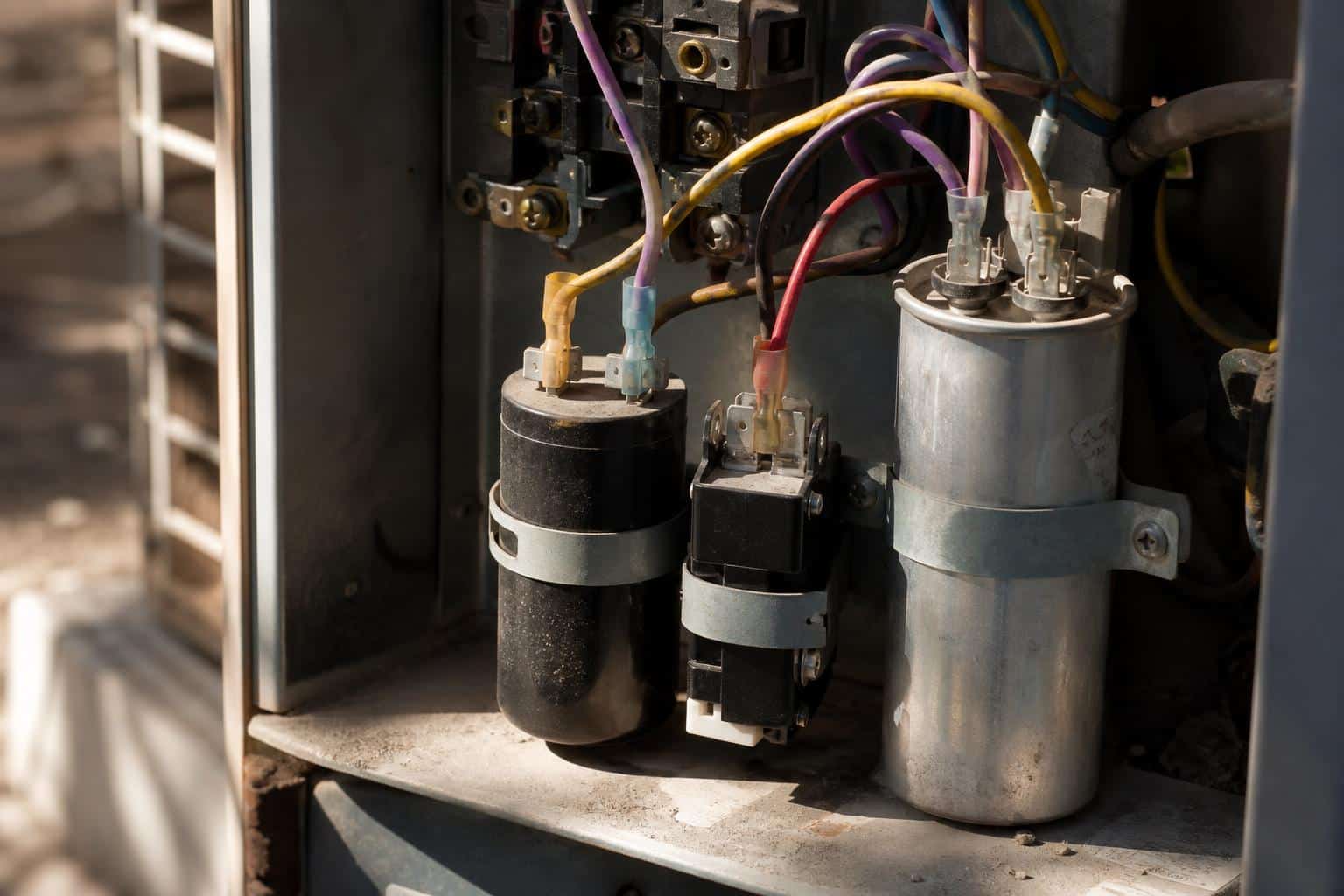

A hard start kit pairs two components: a start capacitor, a much larger capacitance than the run capacitor, and a relay, most commonly a potential relay, whose job is timing. At the moment of startup the relay switches the start capacitor into the start winding circuit, multiplying the motor’s starting torque so the rotor snaps up to speed quickly. A fraction of a second later, once the motor is spinning, the relay drops the start capacitor back out. The capacitor works hard for half a second per cycle and rests the other 99.9 percent of the time.

The measurable effect is a shorter, stronger start: the inrush lasts fewer milliseconds, the lights dim less or not at all, and the motor windings spend less time cooking at locked rotor current. On the right system, a good two-component kit with a proper relay, sized to the compressor rather than a one-size-fits-all gadget, is a legitimate, well-understood piece of engineering rather than a gimmick.

When a Kit Is the Right Answer

Several situations make a genuinely strong case. Aging but healthy compressors benefit most: a unit eight or twelve years into life whose starts have grown labored gets real relief, and easing the start stress is plausible life extension for the most expensive component in the system. Long line sets and certain system designs start hard by nature and appreciate the help. Households on generator power during hurricane season have a specific interest, because the start surge is what staggers a portable or mid-size standby generator; a hard start kit lowers that peak demand, and it is a common part of making a home’s essential loads generator-friendly on the Space Coast. Homes at the end of long rural utility runs, where voltage sags on hot afternoons, see similar benefit, since a sagging supply makes every start harder.

Some manufacturers ship equipment with start assistance from the factory, which says something about the concept’s legitimacy. Adding one to a system that lacks it is inexpensive insurance in the right circumstances, and the installation is quick for a technician working in the cooling system’s electrical compartment.

When a Kit Is a Bandage on a Bigger Problem

Now the honest part. A compressor that suddenly will not start is making a statement, and a hard start kit can sometimes shout over it for a while. Hard starting has causes, and several of them are progressive: a run capacitor drifting out of spec, low or high refrigerant charge, a failing contactor delivering weak voltage, pitted wiring connections, or a compressor with genuinely worn bearings or scored internals approaching seizure. Bolting a start kit onto those situations may buy weeks or months of starts, but the underlying condition continues, and in the worst case the extra starting torque simply drags a dying compressor across the line a few hundred more times before the inevitable, sometimes converting a repairable situation into a total loss.

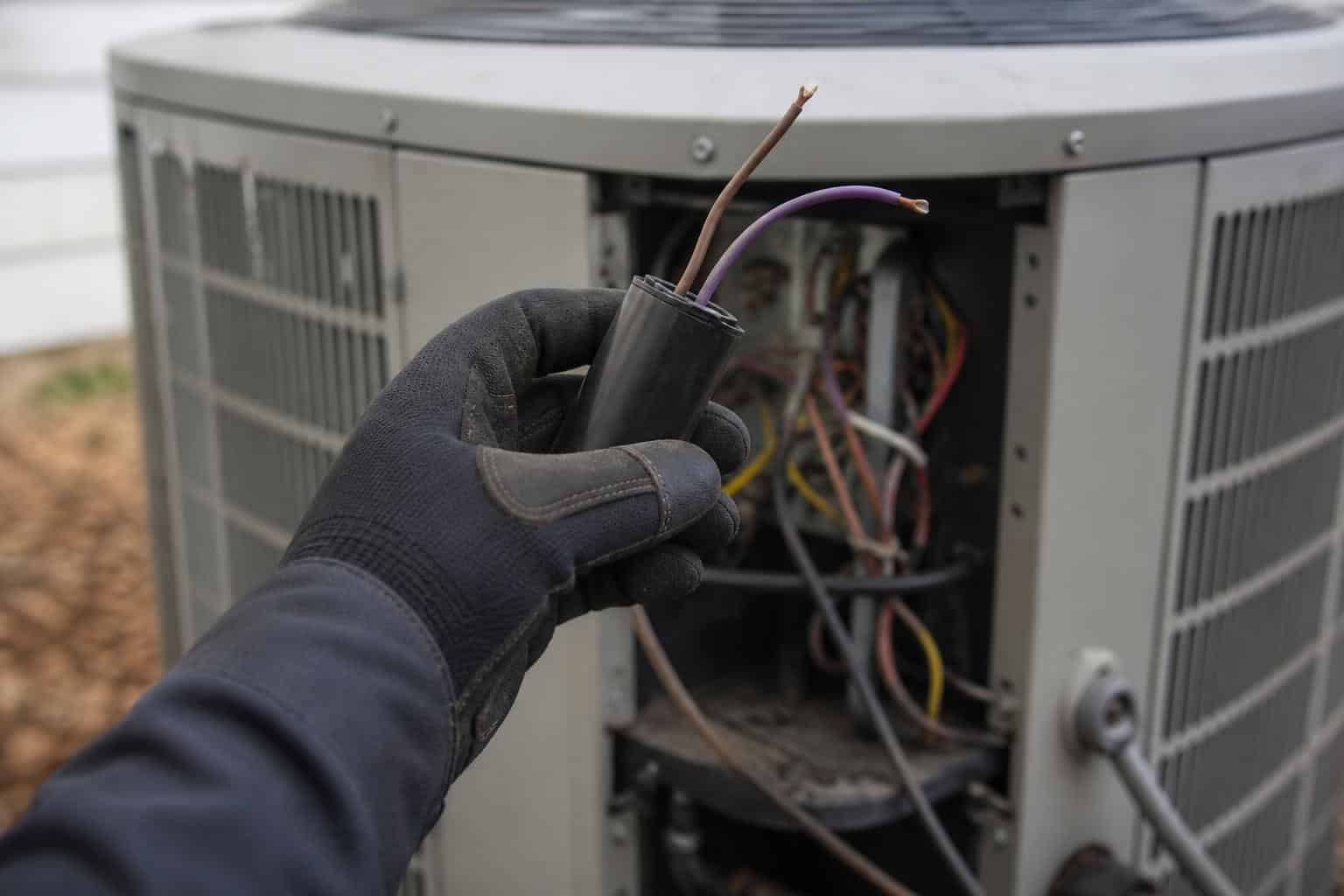

The difference between the right call and the bandage is diagnosis. Before a kit goes on, the run capacitor should be measured against its rating, the contactor inspected, voltage checked under load, the charge verified, and the compressor’s current draw compared with its nameplate. Ten minutes of meter work separates a healthy motor that starts hard from a sick motor that is failing slowly. If a technician reaches for a start kit without touching a meter, or sells one on every visit as a booster, you are entitled to better. It is the same standard we apply on maintenance visits: measure first, then prescribe. ENERGY STAR’s cooling maintenance checklist at energystar.gov reflects the same order of operations.

What Homeowners Notice, Before and After

The complaints that lead here are consistent: house lights dipping at every AC start, a thump or groan from the outdoor unit, a condenser that hums for a second before the fan and compressor catch, breakers that trip occasionally on start but never while running, or a generator that stalls when the AC tries to join. After a properly applied kit, starts become quick and undramatic, the light-dimming shrinks noticeably, and generator starts stop being a coin flip.

Two cautions for the do-it-yourself minded. First, capacitors store a charge that persists after power is off, and the stored energy in a start capacitor is genuinely hazardous; this is inexpensive work for a technician and a poor place to learn discharge procedures. Second, the cheap universal single-wire gadgets sold online are not equivalent to a properly sized two-component kit with a potential relay, and an oversized or badly switched start capacitor that stays in the circuit too long actively damages windings. The part is cheap either way; the sizing and the relay behavior are the product.

Frequently Asked Questions

Will a hard start kit lower my electric bill?

Not meaningfully. The start surge it tames lasts a fraction of a second, so the energy saved per start is tiny even though the peak demand reduction is large. The value is in reduced starting stress on the compressor, gentler behavior on generators and sagging supplies, and the end of the light-dimming, not in the monthly bill.

Is a hard start kit the same as replacing my capacitor?

No, and the distinction matters. The run capacitor is a standard component your system requires, and when it drifts or fails it gets replaced like for like. A hard start kit is an addition: a separate start capacitor plus a relay that engages only during startup. A weak run capacitor causing hard starts needs replacement, not a start kit layered on top of it, which is exactly why measurement comes first.

Can a hard start kit save a compressor that is failing?

It can sometimes keep one starting for a while, and in an honest conversation that can be a legitimate strategy, buying a season to plan and budget for replacement rather than facing it in July. What it cannot do is heal worn bearings or scored internals. The important thing is knowing which situation you are in, so the kit is a chosen bridge rather than a false reassurance.

Do I need one for my portable generator to run the AC?

Very often, yes. Generators are rated for surge and running watts, and a central AC’s locked rotor surge is usually the tallest peak in the whole house. A hard start kit cuts that peak substantially, which is frequently the difference between a generator that carries the AC and one that stalls. Sizing still matters; a kit narrows the gap but does not make a small generator into a large one.

If your air conditioner starts with a struggle, the right first step is a measurement, and the right second step might well be a hard start kit, chosen for a reason rather than sold as a reflex. Inlet Mechanical diagnoses hard-starting systems across Palm Bay, Melbourne, and Brevard County, hurricane-season generator questions included. Call us at (321) 723-0858.
